SPECS
| Thickness | 8 mm |
|---|---|
| Blades angle | 30° |

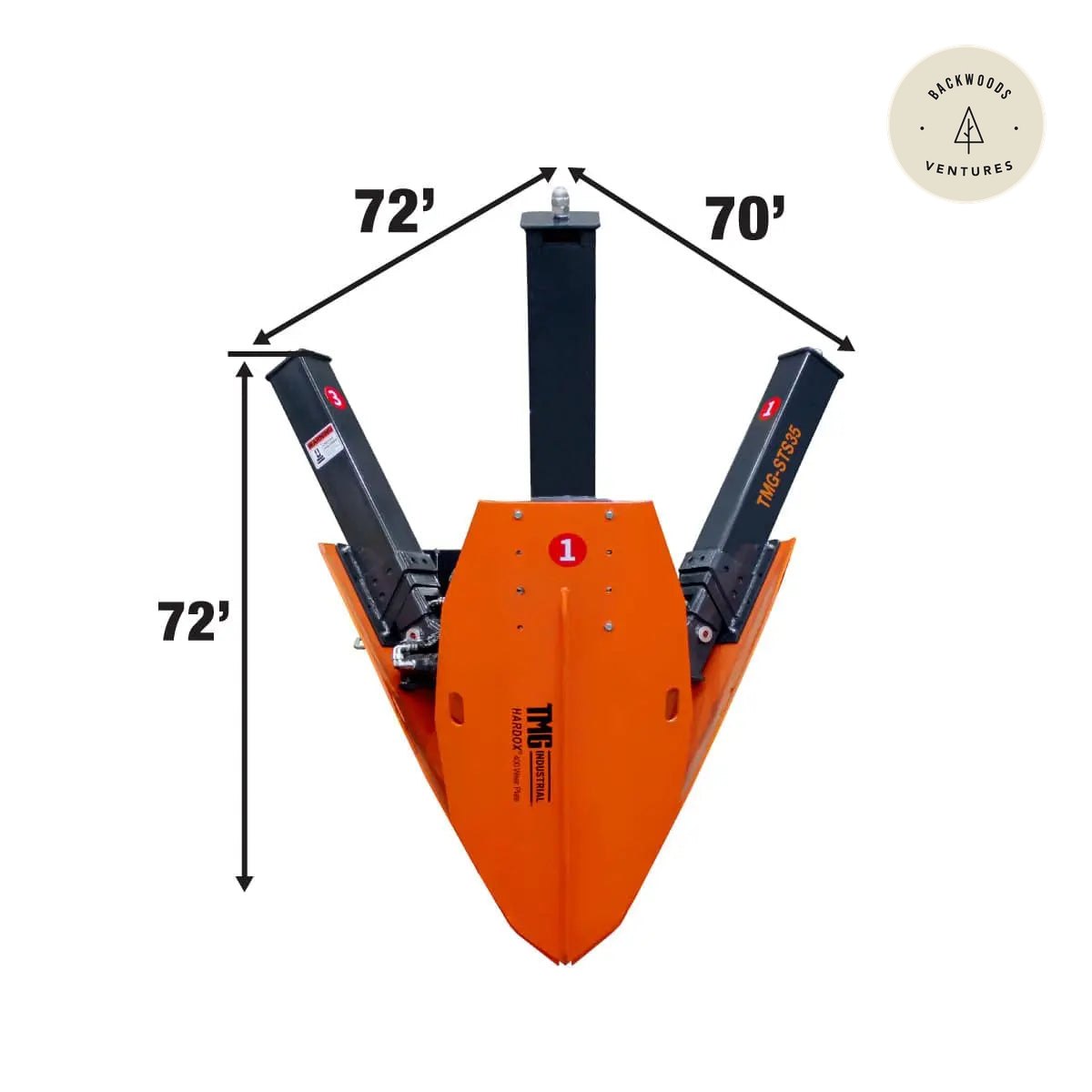

| Overall size | 72” (L) x 70” (W) x 72” (H) |
| Blade quantity | 3 |
| Max. ball depth | 36” |
| Max. ball weight | 1250 lb |
| Operating weight | 1500 lb |
| Max. ball diameter | 27-½” |
| Max. blade opening | 22” |
| Tree height capacity | 4-6 feet (approx.) |
| Blade cylinder stroke | 28” |
| Swing cylinder stroke | 4-½” |

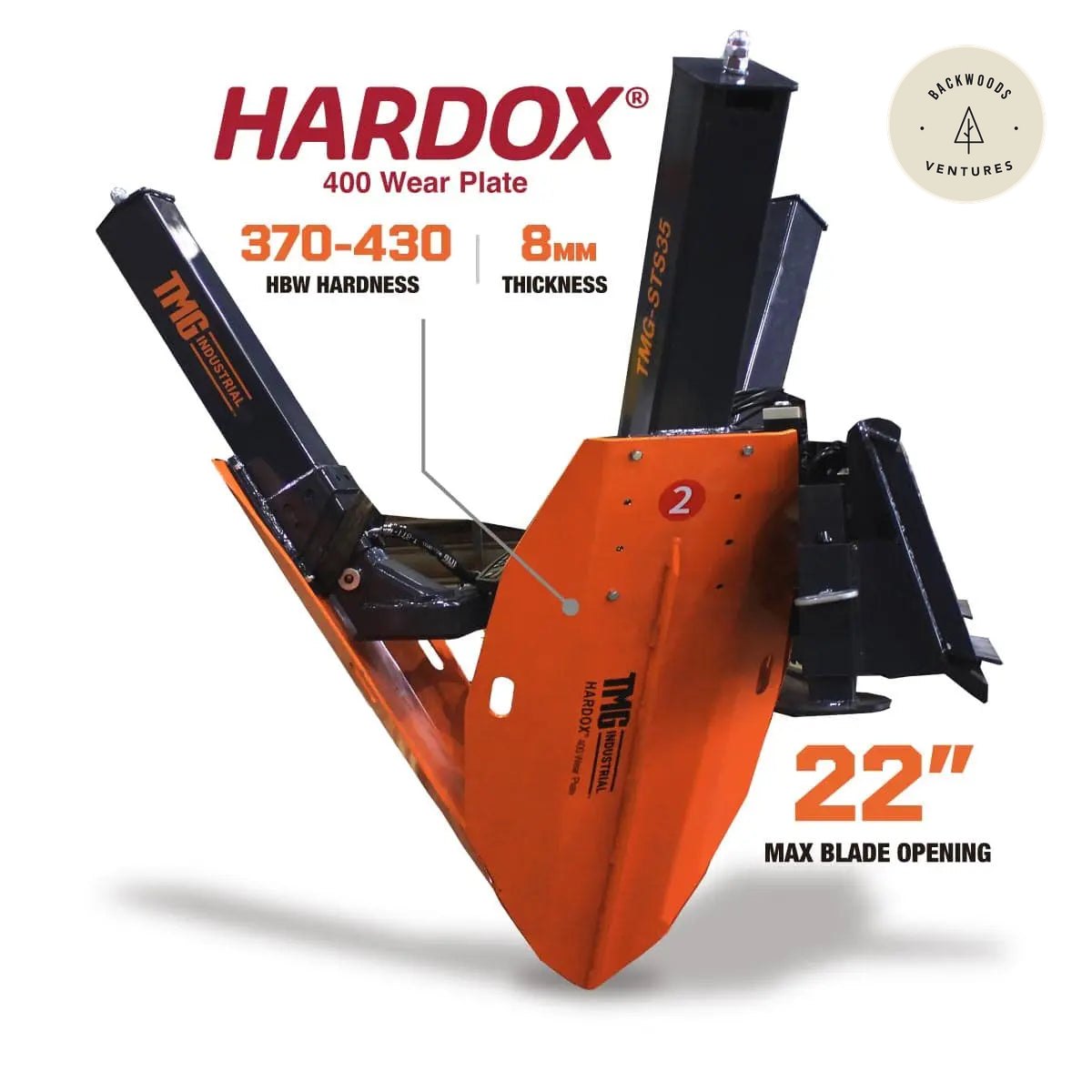

| Hardox® 400 steel blades | Hardness: 370-430 HBW |

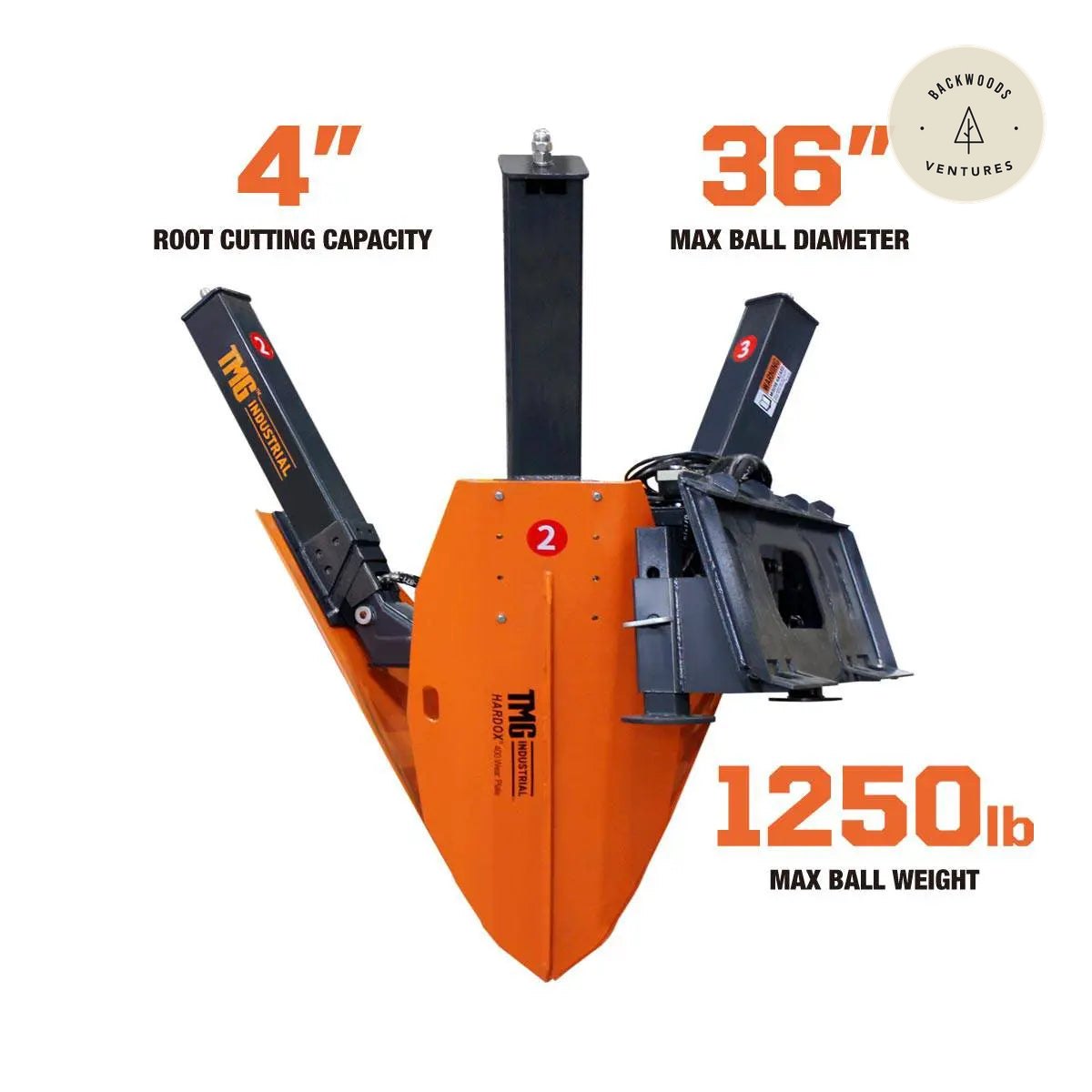

| Max. root cutting capacity | 4” |

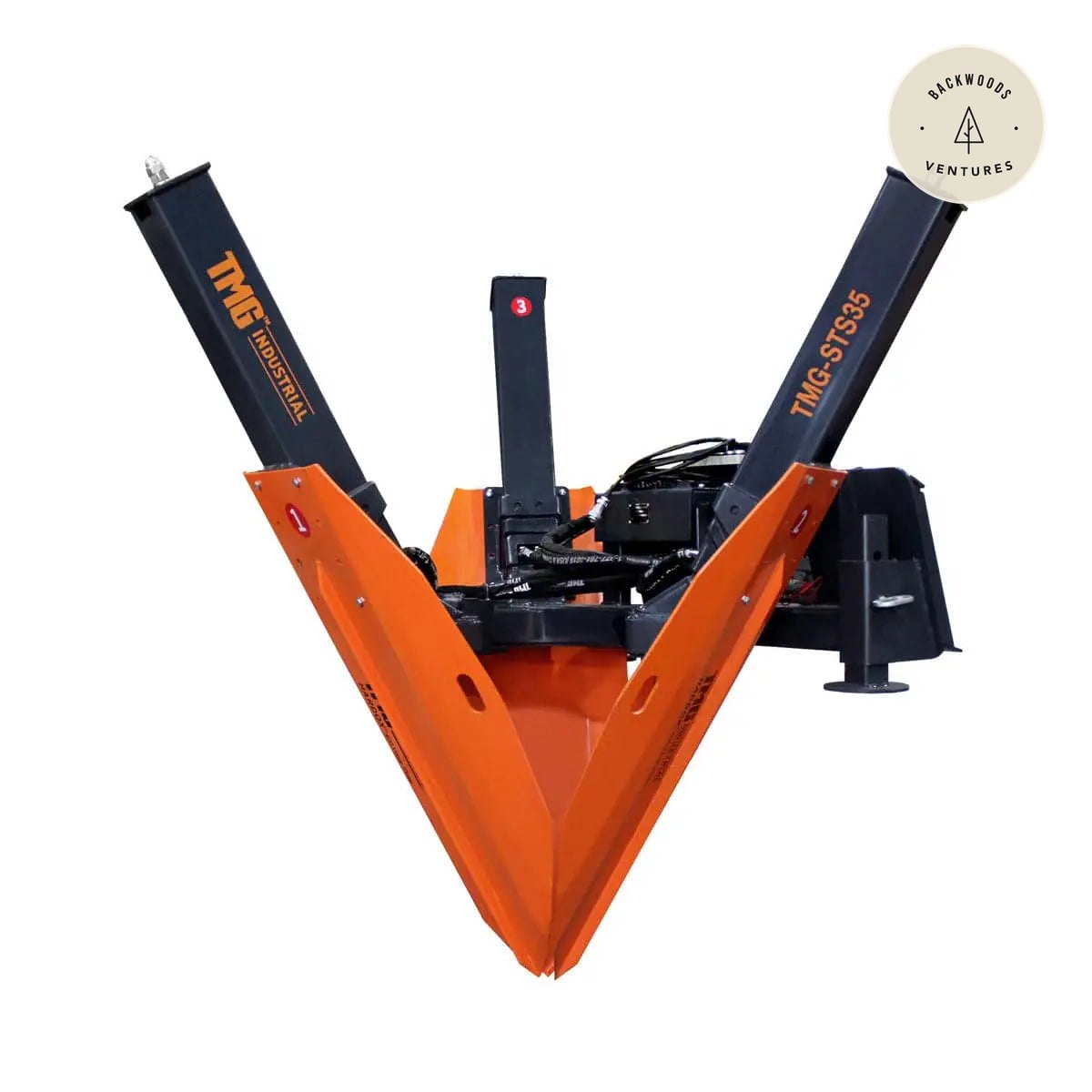

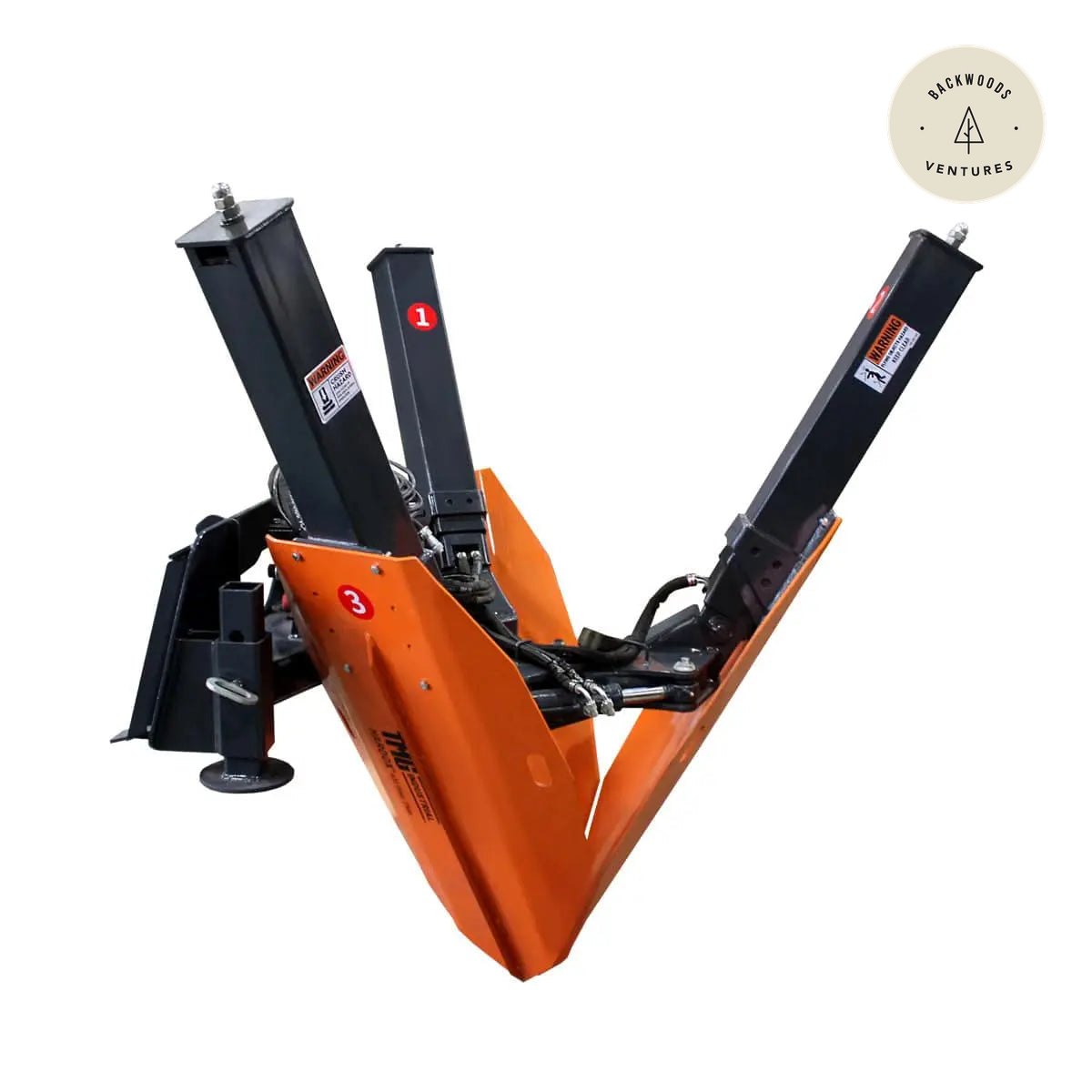

36" Skid Steer Hydraulic Tree Spade, 4" Diameter Cut Capacity, 22" Blade Opening, Hardox® 400 Blades, TMG-STS35
TMG Industrial
The TMG-STS35 Skid Steer Hydraulic Tree Spade is an excellent addition to the inventor of any nursery or landscaping business. Add phenomenal tree removal and transplanting capabilities to your customers with the clean and powerful working action of this tree spade.
Request to order
Pay in full and collect it free from any of our depots
Or reserve it with $1,089.90 down and pay the remaining $9,809.10 before it ships — that's the one to choose if you need freight quoted to your own address.
Fully refundable for 7 days. Balance isn't due until it ships.
or
Tim confirms the price, the lead time and freight before you commit.
- Free delivery to our depots across Alberta, Saskatchewan and Manitoba
- Canadian distributor — we ship within Canada only
- Parts stocked in Mannville — we answer the phone when something breaks
Free delivery to any of our 9 depots across AB, SK and MB — ready to collect in as little as 10 business days.
No freight surcharge, no handling fee. Or collect at our Mannville yard any day we're open. See the depot list
DETAILS
The TMG-STS35 Skid Steer Hydraulic Tree Spade is an excellent addition to the inventor of any nursery or landscaping business. Add phenomenal tree removal and transplanting capabilities to your customers with the clean and powerful working action of this tree spade. Equipped with heavy-duty Hardox® 400 Blades that slice through roots and minimize any damage to the tree so it can be immediately replanted or repurposed. Capable of working with trees up to 4" in diameter so you can easily distribute new growth saplings to customers and sell more product without tearing up your growing grounds. The root ball itself is 27-½" in diameter and 36" in depth. Our tree spade has an opening of 22" and can accommodate various tree types ranging anywhere from four to six feet in height. Three removable blades can easily be sharpened or replaced and are arranged opposite one another for a completely clean cut configuration that supports the root ball upon removal. Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support for a smooth working action.
$10,899
$1,089.90 deposit · refundable 7 days
